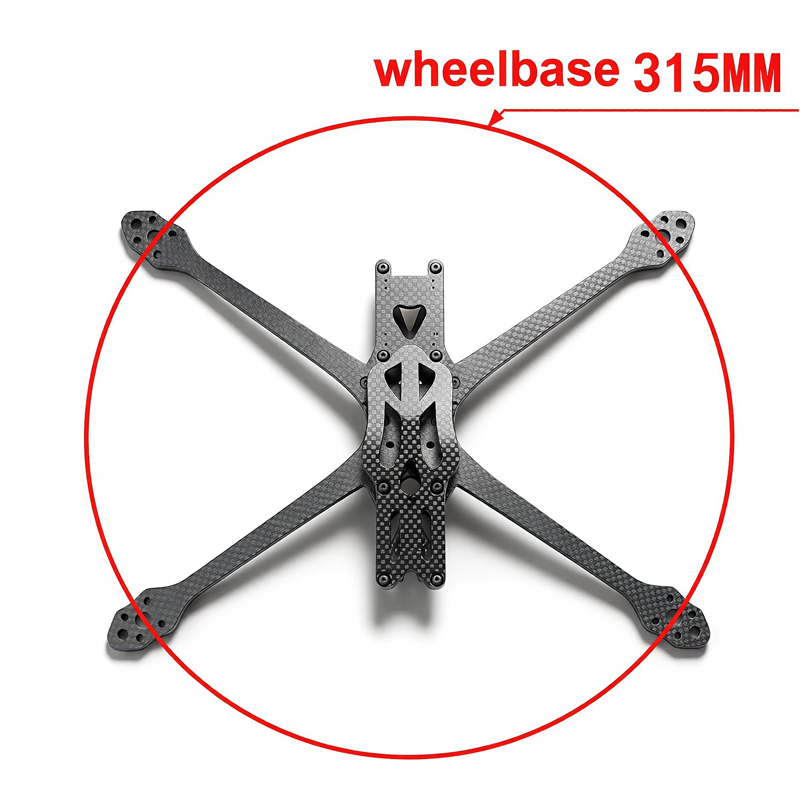

APEX HD 7 Inch Carbon Fiber Frame Kit 315mm Wheelbase 5.5mm Arm Thickness for Freestyle FPV RC Racing Drone

Product Description
The APEX HD 7-Inch Carbon Fiber FPV Frame redefines durability and stability in long-range drone technology. Engineered specifically for 7-inch propellers, it offers a remarkable increase in payload capacity and flight efficiency compared to conventional 5-inch freestyle frames. This significant enhancement in lifting power, combined with a highly rigid carbon fiber structure and optimized internal volume, makes the APEX HD 7-Inch an incredibly robust and flexible solution for a wide range of cinematic and long-range flight applications.

Key Features
● Innovative Design & Advanced Components
Optimized Configuration: Features the most advanced 3K full carbon fiber plates and CNC-machined aerospace hardware, ensuring high structural rigidity and exceptional flight performance under heavy loads.
Original Anti-Vibration Design: A pioneering rigid frame structure maintains reliability during high-speed, heavy-thrust operations, ensuring minimal resonance and the elimination of "jello" effects even in extreme wind conditions.
Deep Customization: Incorporates versatile mounting patterns (20x20mm and 30.5x30.5mm) tailored for large-scale flight controllers and high-amperage ESCs, ensuring long-term stability and strong reliability.
● Intelligent Structural & Core System
Self-Developed Frame Geometry: An intelligent split-arm frame geometry keeps the drone performing at its best, distributing heavy payloads evenly while maximizing propeller efficiency in harsh flight environments.
Aerodynamic & Spacious Core Design: The center frame's spacious and aerodynamic design allows for rapid heat dissipation from high-power Digital HD VTX units, preventing overheating during long-range operation.
Integrated Payload System: A rigid core design integrates secure mounting for heavy cinematic action cameras (like GoPros) and massive Li-Ion/LiPo battery packs, optimizing center of gravity and flight regulation.
● Robust & Heavy-Duty Arm Structure
Ultra-Thick Carbon Build: The frame features ultra-thick 5.5mm carbon fiber arms, utilizing highly durable materials to withstand immense thrust and prevent snapping during hard landings or crashes.
Modular Interface: Easily interchangeable individual arms adapt to rigorous flying environments, allowing for quick field repairs without disassembling the entire center core.
● Versatile & Builder-Friendly Interface
Spacious Build Area: A highly optimized top and bottom plate layout offers an intuitive building experience, enabling effortless electronic component installation and wire routing for bulky components.
Digital HD Compatibility: Includes specialized support for massive Digital HD systems (such as the DJI O3 Air Unit or Caddx Vista), catering to advanced builders requiring crystal-clear, long-range video transmission.
● Smart Features for Efficiency and Convenience
Pre-set TPU Mount Compatibility: Supports highly customizable 3D-printed TPU mounts, enabling quick access and flexible installation for GPS modules, heavy antennas, and action camera mounts.
Non-Damage Wiring Protection: Features CNC-chamfered carbon edges that ensure delicate motor wires are protected from chafing, increasing frame and electronic lifespan significantly in a single build.
Advanced Heavy Payload Capability: Unique frame proportions and high-strength hardware allow for efficient carrying of demanding payloads, boosting overall lifting efficiency and flight stability.
● Maintenance & Customization
Builder's Interface: Provides open access for professional FPV pilots and engineers to configure electronics, perform field repairs, and swap out heavy-duty components efficiently.
Flexible Build Adjustments: Users can fine-tune their center of gravity, standoff heights, and camera angles for specific, unique macro-cinematic requirements.

Applications
● Heavy-Lift Cinematic FPV Filming
● Long-Range Mountain Surfing & Cruising
● Carrying Professional Action Cameras
● High-Speed Chase Videography
● Custom Long-Range Drone Projects

With its robust 7-inch design, powerful thick carbon fiber arms, and spacious HD-ready electronics core, the APEX HD 7-Inch FPV Drone Frame is the ultimate solution for pilots demanding a highly durable, vibration-free, and cost-effective heavy-lift platform.
For more information or to customize your FPV build, please contact us.
