IFlight Chimera 5 FPV Frame HD Digital Image Transmission 5-inch ultra Light Rack Crossing Aircraft Frame FPV Frame

Product Description
The iFlight Chimera5 HD FPV Frame redefines durability and cinematic clarity in long-range drone technology. Featuring a highly optimized 3K carbon fiber construction, it is remarkably lighter and stiffer than conventional 5-inch freestyle frames. This significant focus on weight distribution, combined with a purpose-built Deadcat geometry that keeps propellers out of view, makes the Chimera5 an incredibly versatile and capable solution for a wide range of long-range FPV and cinematic filming applications.

Key Features
● Innovative Design & Advanced Components
Optimized Configuration: Features a robust Full 3K Carbon Fiber airframe, ensuring high structural rigidity and exceptional flight performance.
Original Frame Design: A pioneering Deadcat (DC) geometry pushes the front arms wider, ensuring propellers remain completely out of the HD camera's view for a flawless cinematic experience.
Deep Customization: Incorporates versatile mounting options tailored for broad compatibility, supporting both 30.5x30.5mm and 20x20mm electronics stacks.
● Intelligent Protection & Cooling Layout
Self-Developed Protection Technology: An intelligent 360° TPU protection system safeguards the frame ends and camera mounts, keeping the drone performing at its best in harsh crash scenarios.
Thermodynamic VTX Design: The rear mounting bay features an open aerodynamic layout that allows for rapid heat dissipation from the Caddx Vista or DJI O3 Air Unit, preventing overheating during operation.
Integrated Standoff System: A rigid core design utilizes a 3mm middle plate that securely locks the 5mm arms in place, reducing resonance and optimizing gyro performance.
● Compact & Robust Arm Structure
Heavy-Duty Build: The frame features thick 5mm carbon fiber arms, utilizing durable materials to withstand hard crashes during freestyle and cinematic maneuvers.
Modular Interface: Easily interchangeable arm mechanics adapt to various flying styles, allowing pilots to replace individual arms quickly without disassembling the entire frame core.
● Versatile & Builder-Friendly Interface
Digital HD Compatibility: Specially designed mounting plates offer a seamless experience for installing modern digital HD video systems, enabling effortless integration of the Vista Air Unit.
Multiple Camera Modes: Includes support for both 19mm (Micro) and 20mm FPV cameras, catering to advanced builders requiring precise camera positioning for different fields of view.
● Smart Features for Efficiency and Convenience
Pre-set Mounting Library: Supports dedicated TPU mounts for antennas and GPS modules, enabling quick access and flexible operation for long-range recovery setups.
Vibration Isolation: Features a thick, rigid center core that ensures smooth, uniform flight characteristics without translating motor vibrations to the flight controller, increasing HD video smoothness.

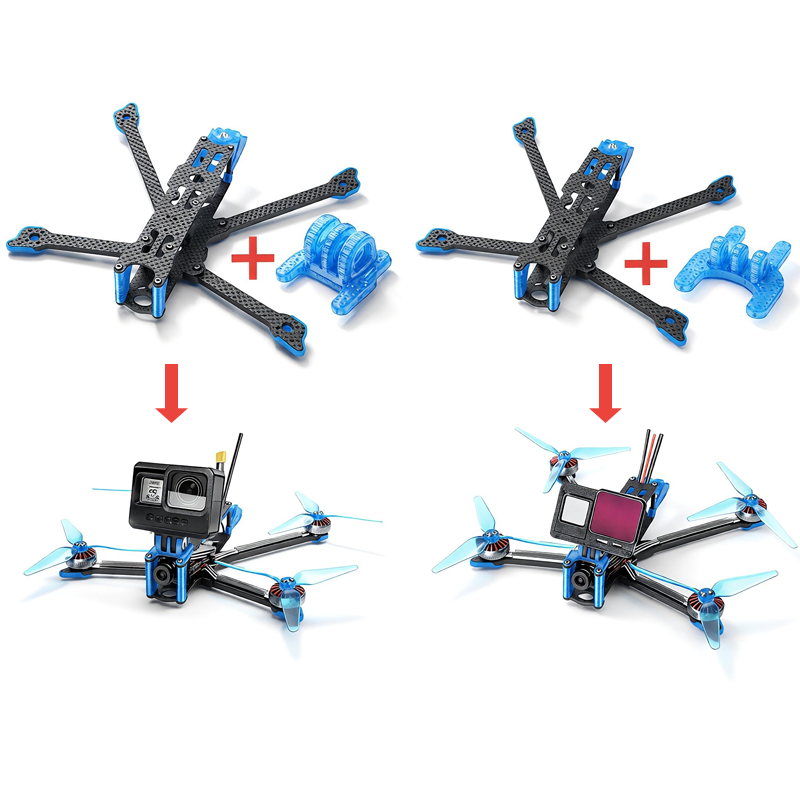

Advanced Payload Capability: Unique frame proportions allow for efficient carrying of heavy payloads like a full GoPro Hero or large Li-Ion packs, boosting overall flight times up to 25 minutes.
● After-Sales Support & Customization
Builder Interface: Provides easy access for FPV engineers and hobbyists to route wires, perform field repairs, and swap out components efficiently.
Flexible Hardware Adjustments: Users can fine-tune their build layout with adjustable battery straps and multiple standoff configurations for specific, unique long-range requirements.

Applications
● Long-Range Mountain Surfing
● Cinematic Prop-Free Filming
● Freestyle FPV Flight
● High-Speed Chase Filming
● Custom Drone Building Projects

With its Deadcat geometry, robust 5mm carbon fiber arms, and digital HD compatibility, the iFlight Chimera5 HD FPV Frame is the ultimate foundation for pilots demanding a durable, smooth, and professional cinematic drone.
For more information or to customize your FPV build, please contact us.
