Radiomaster TX12 16ch 6.6-8.4v DC Opentx Multi-module Compatible Digital Proportional Radio System Transmitter 20dbm 160ma 8.4V

Product Description

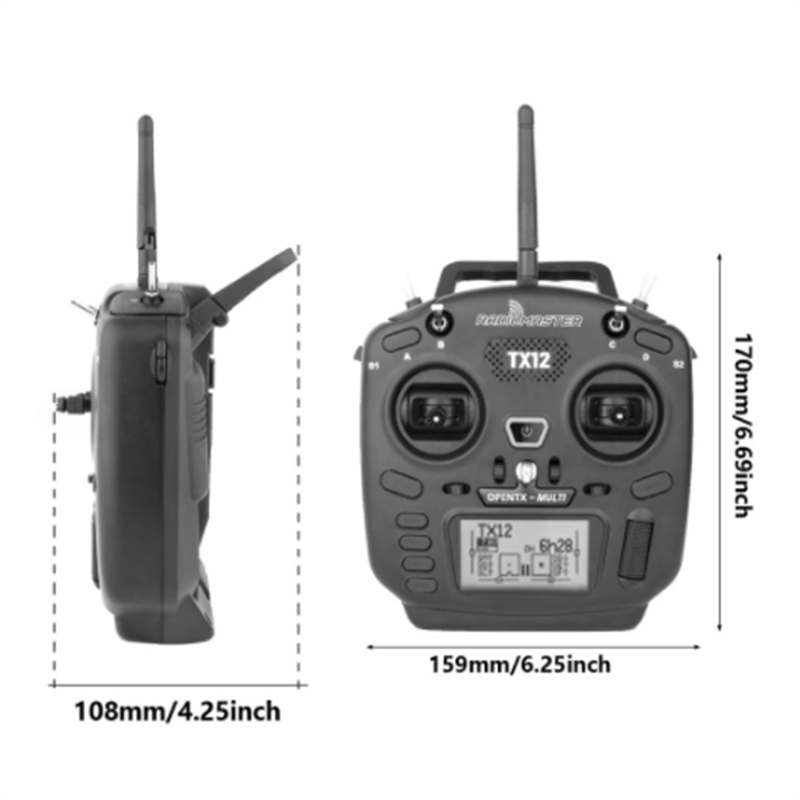

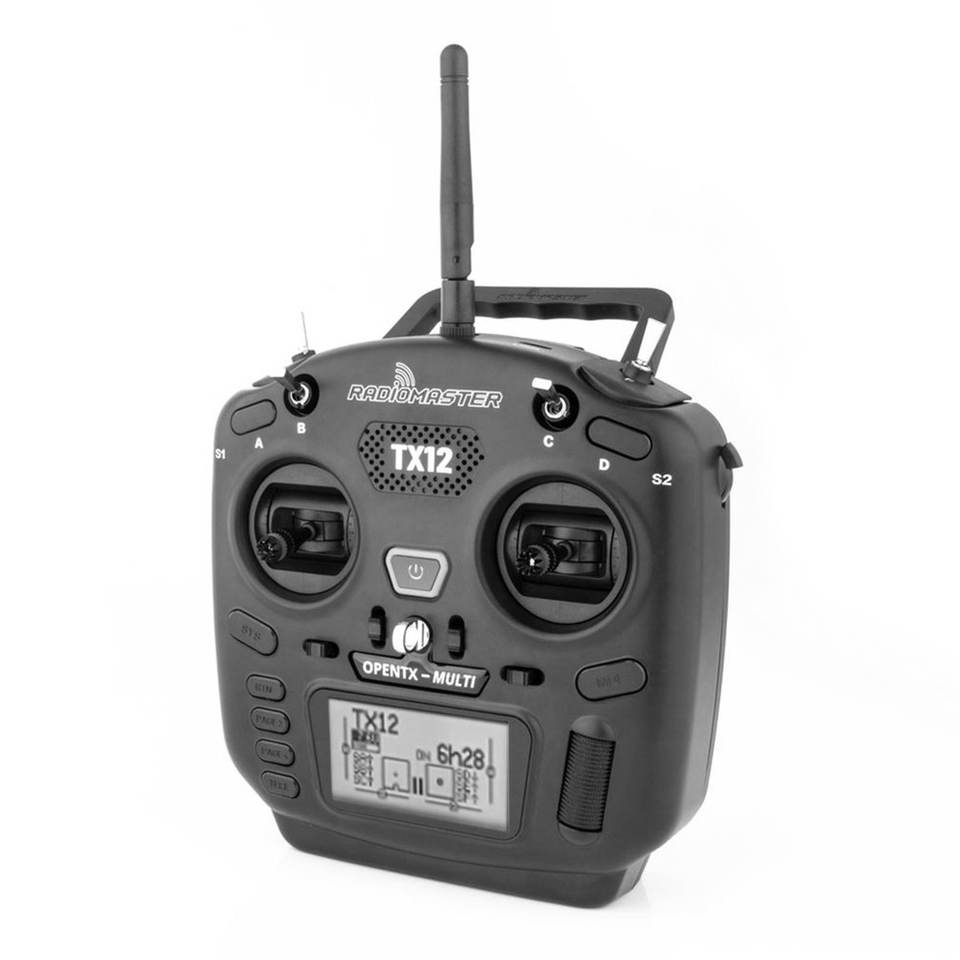

The RadioMaster TX12 16-Channel Compact OpenTX Remote Controller redefines portability and functionality in open-source RC technology. Weighing just 363g, it is a remarkable 50% lighter than conventional full-sized "box" transmitters, which typically weigh over 700g. This significant reduction in weight, combined with a compact size that is roughly 1/3 smaller in volume, makes the TX12 an incredibly portable and flexible solution for pilots who need professional features in a travel-friendly package.

Key Features
● Innovative Design & Advanced Components
Optimized Configuration: Features the powerful STM32F407 Main Chip and runs on the industry-standard OpenTX/EdgeTX operating system, ensuring high computing efficiency and limitless customization potential.
Original Ergonomic Design: A pioneering compact chassis design maintains comfort during hours of continuous operation, featuring a folding handle and non-slip grips tailored for both "thumbers" and "pinchers."
Deep Customization: Incorporates a fully open-source architecture tailored for long-term versatility, supporting Lua scripts, custom voice packs, and extensive mixing.
● Intelligent Transmission & Power System
Self-Developed Link Technology: An intelligent internal CC2500RF Module (supporting FrSky, Futaba SFHSS, Hitec, etc.) keeps the radio performing at its best, delivering stable signals for a wide range of receivers.
Thermodynamic Stability: The optimized internal layout allows for consistent signal output without overheating, ensuring the internal module operates efficiently even during long sessions.
Integrated Power System: A unified design supports standard 18650 Li-Ion cells or 2S LiPo batteries, reducing the need for proprietary packs while offering convenient USB-C Charging.
● Compact & Precision Control Interface
Lightweight Build: The controller features high-precision Hall Effect Gimbals (on select models), featuring durable mechanics and smooth travel that eliminate the "drift" common in entry-level radios.

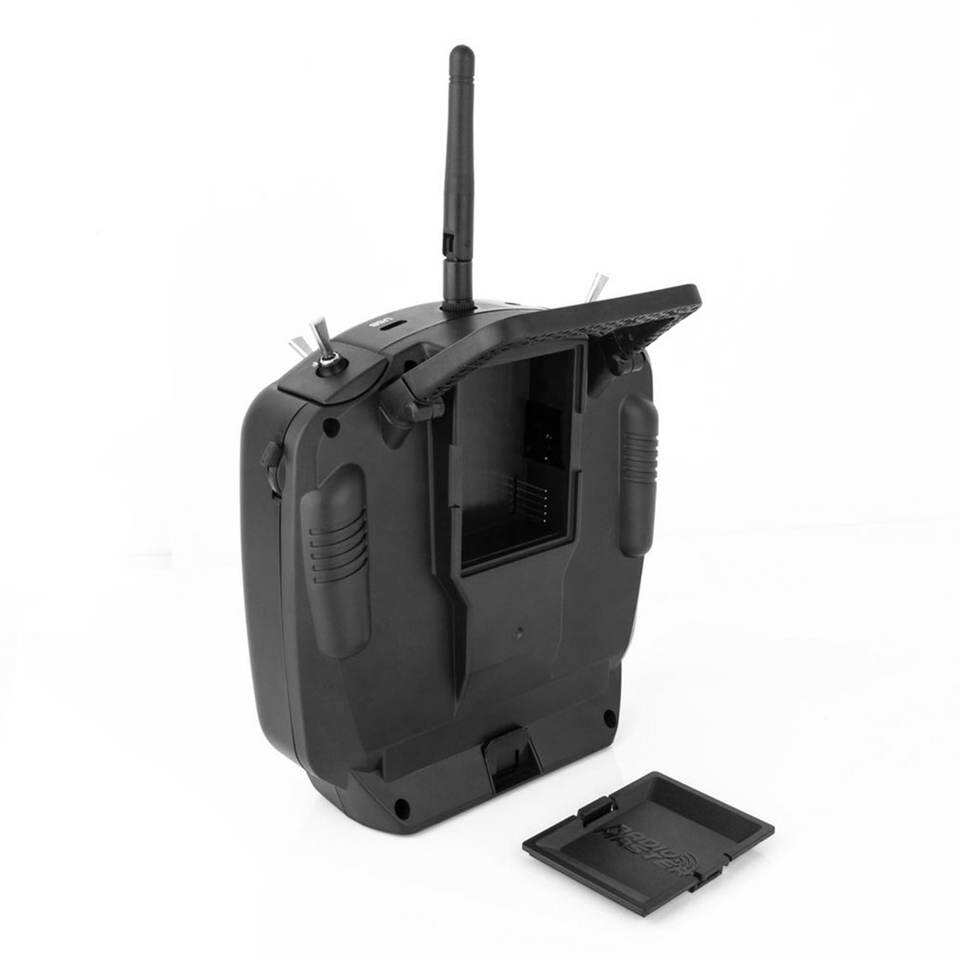

Modular Interface: An external Micro JR Module Bay adapts to various long-range requirements, allowing for the seamless attachment of TBS Crossfire, Tracer, or high-power external ELRS modules (up to 1W).
● Versatile & User-Friendly Interface
LCD Display Control: A clear 128x64 Monochrome LCD with an updated UI offers an intuitive experience, enabling effortless parameter adjustments and telemetry monitoring that remains readable even in bright sunlight.

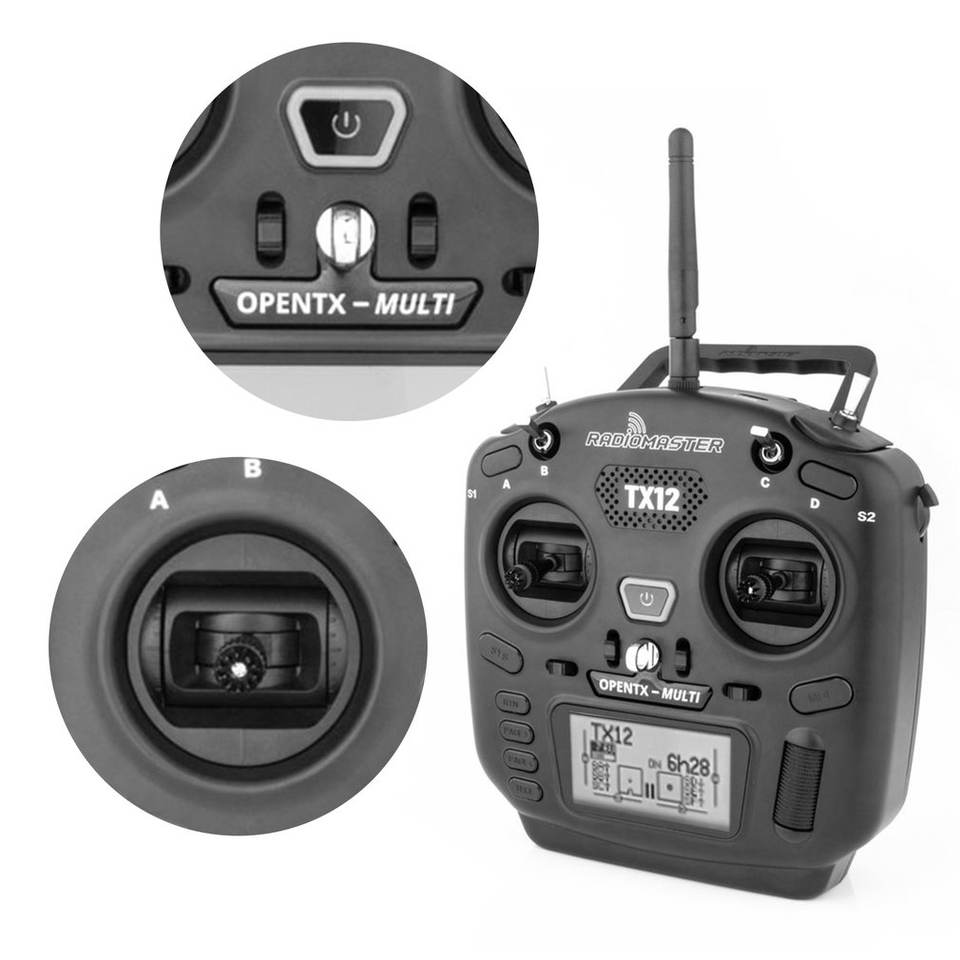

Intuitive Navigation: Features a premium metal roller for precise menu selection, allowing users to navigate complex OpenTX menus quickly and efficiently.
● Smart Features for Efficiency and Convenience
Pre-set Model Library: Supports extensive SD card storage for unlimited model presets, enabling quick access and flexible switching between your entire hangar of aircraft.
Non-Stop Operation: Features a built-in battery management system that ensures delicate, safe charging and long operation times tailored for field use.
Advanced Connectivity: Unique rear ports include a USB-C Simulator port, SD Card slot, and Headphone jack, boosting overall utility for simulator practice and immersive audio feedback.
● After-Sales Support & Customization
After-Sales Interface: Supports easy firmware updates via OpenTX Companion and allows for simple gimbal tension adjustment without disassembling the radio.
Flexible Parameter Adjustments: Users can fine-tune the radio settings, switches, and logical functions for specific, unique mission requirements.

Applications
● FPV Drone Racing
● Freestyle Quadcopters
● RC Fixed-Wing Airplanes
● RC Helicopters
● Surface Vehicles & Boats

With its compact design, powerful OpenTX integration, and expandable module bay, the RadioMaster TX12 is the ultimate solution for pilots demanding a fast, portable, and cost-effective control system.
For more information or to customize your radio configuration, please contact us.
